Mecway is a capable and affordable general-purpose finite element analysis (FEA) software for Windows. It provides a complete integrated environment for pre-processing (creating geometry and meshing), solving, and post-processing results for linear and non-linear mechanical, thermal, and coupled analyses. Positioned as a cost-effective alternative to high-end commercial FEA suites, Mecway balances a user-friendly interface with respectable analytical capabilities, making advanced simulation accessible to smaller companies, consultants, and educational users.

It is particularly noted for its intuitive workflow, support for scripting automation, and a generous free version for non-commercial learning.

Key Features & Capabilities

Mecway covers a wide range of analysis types essential for engineering design validation.

Core Analysis Types:

1. Linear Static Stress Analysis: The fundamental analysis for calculating displacements, stresses, and strains under static loads. Supports multiple load cases.

2. Modal Analysis: Calculates natural frequencies and mode shapes of a structure, essential for vibration and dynamic response studies.

3. Thermal Analysis: Steady-state and transient heat transfer analysis (conduction, convection, radiation). Can be coupled with stress analysis for thermo-mechanical problems.

4. Buckling Analysis: Predicts critical buckling loads and modes for slender structures.

5. Dynamic Analysis: Includes response spectrum and time-history analysis for seismic or shock loading.

6. Non-Linear Analysis: Basic support for material non-linearity (plasticity) and geometric non-linearity (large deformations).

Workflow & Usability Features:

1. Integrated Pre/Post Processor:

   • Geometry Modeling: Basic solid modeling tools and direct CAD import (STEP, IGES). Often used in conjunction with external CAD.

   • Meshing: Automatic tetrahedral and hexahedral meshing with local refinement controls.

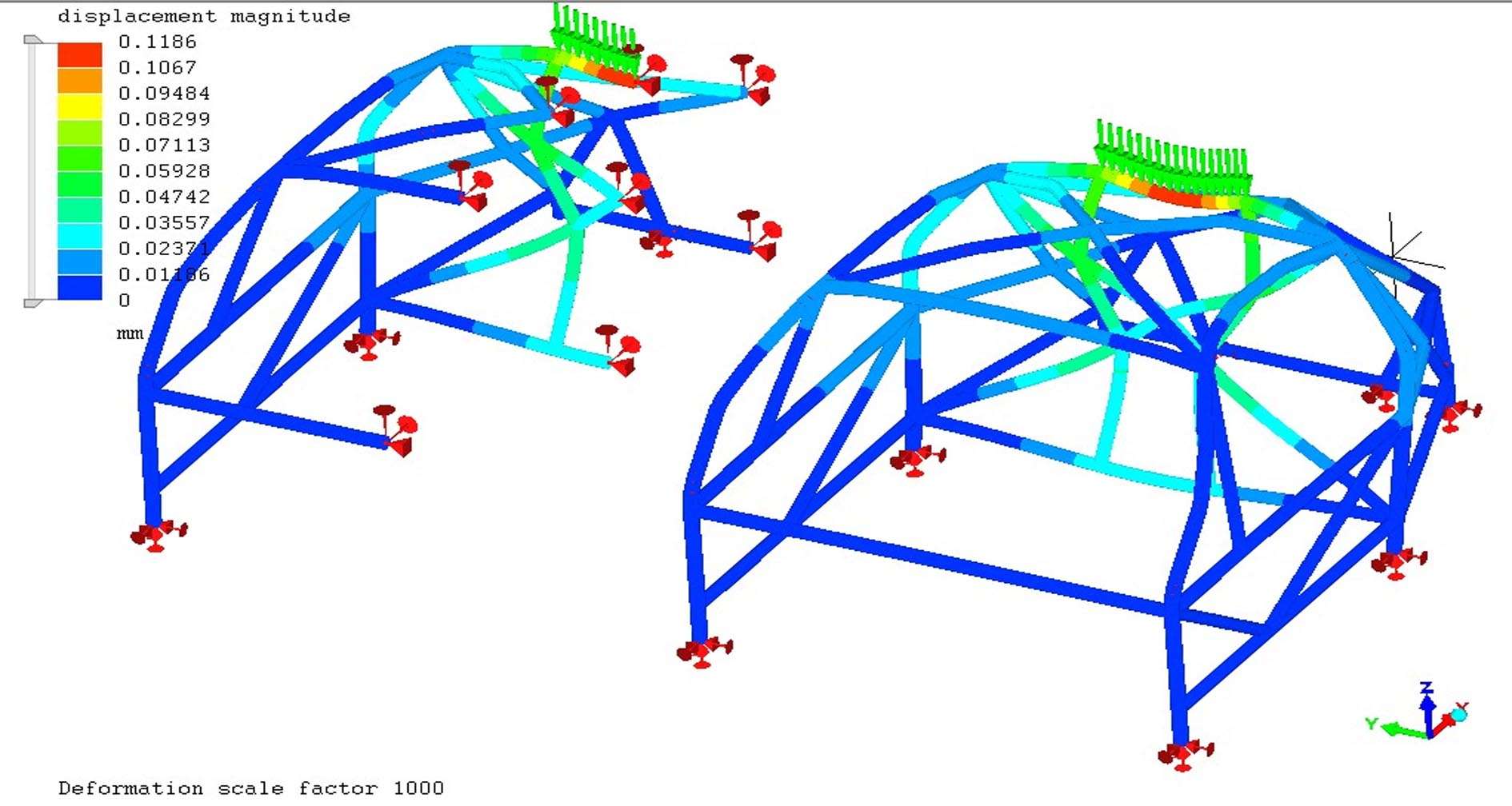

   • Results Visualization: Contour plots, deformations, animations, graphs (XY plots), and detailed result probes.

2. Solver Technology:

   • Uses its own efficient solver (Mecway Solver) and also integrates the well-respected Calculix solver (open-source) as an alternative, giving users a choice and validation option.

3. Automation & Customization:

   • Built-in Scripting: Uses the Lua programming language for automating repetitive tasks, creating custom loads or boundary conditions, and extending functionality.

   • Parameterized Studies: Can run studies while varying parameters to explore design spaces.

🖥️ System Requirements

Mecway is reasonably efficient. The minimum system requirements are Windows 7 SP1 or later (64-bit strongly recommended), a 1 GHz processor, 2 GB of RAM, 500 MB of free disk space, and a graphics card supporting OpenGL 2.1.

For recommended professional use to handle more complex models comfortably, a modern Windows 10/11 (64-bit) system with a multi-core processor (Intel i5/i7 or AMD Ryzen 5/7), 8-16 GB of RAM, a dedicated graphics card with 1-2 GB VRAM, and an SSD is advised.
