Pipe Flow Wizard 2.1.3

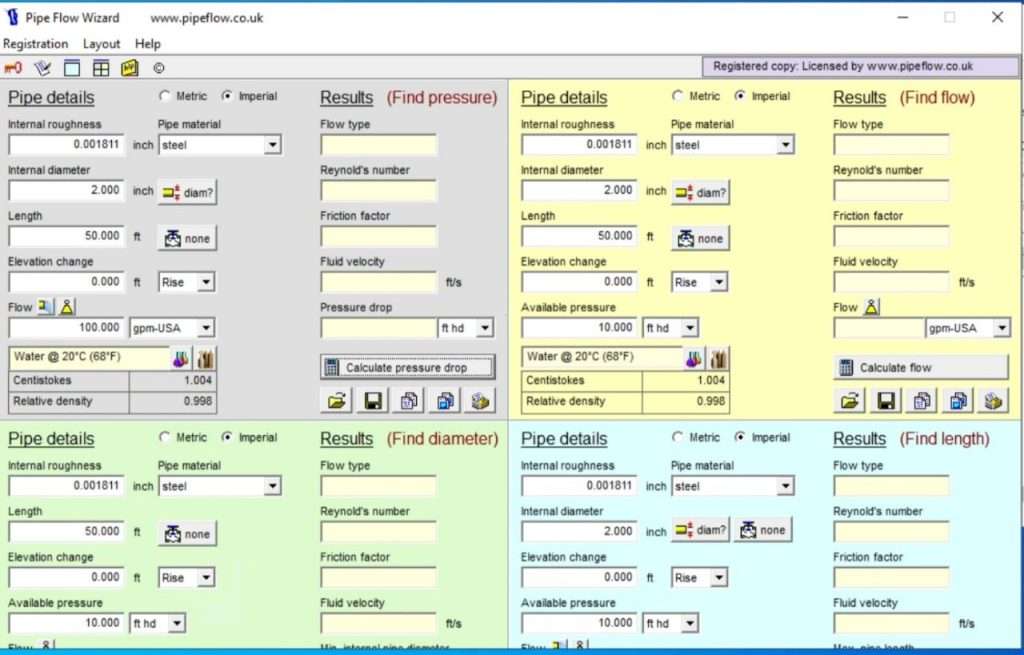

Pipe Flow Wizard is an amazing and easy to use software for calculating the flow rate in a pipe, calculating the pressure drop in the pipe and the pipe diameter size. The results are calculated for the length of a pipe between the start elevation and the end elevation, allowing for the addition of pipe connections to show valves and bends along the pipe. Pipe Flow is released with a personal database of pipes, fittings and fluids.

The software calculates the pressure drop in the pipe, taking into account friction loss, connections and changes in elevation. As part of the pipe pressure drop results, it also  calculates and displays the flow type, Reynolds number ,  friction coefficient and fluid velocity. With users in over 70 countries worldwide, Pipe Flow is a very useful software for calculating flow rate and pressure drop in pipes.

Pipe Flow Wizard features and capabilities:

• Investigating and calculating pressure drop in the pipe, including: pipe material, internal pipe roughness, internal diameter, pipe length, fluid flow rate, fluid density, and length of pipe used
• Effect of pipe friction losses using the Darcy Weisbach equation, considering pipe materials
• Pipe Fittings Database
• Pipe fittings and custom parts
• 3D isometric drawings and standard 2D piping layouts
• Powerful calculation engine for solving complex pipe networks
• Calculating friction factors using the Colebrook-White equation
• Calculating the minimum size for the inner diameter of the pipe
• Calculating the maximum pipe length
