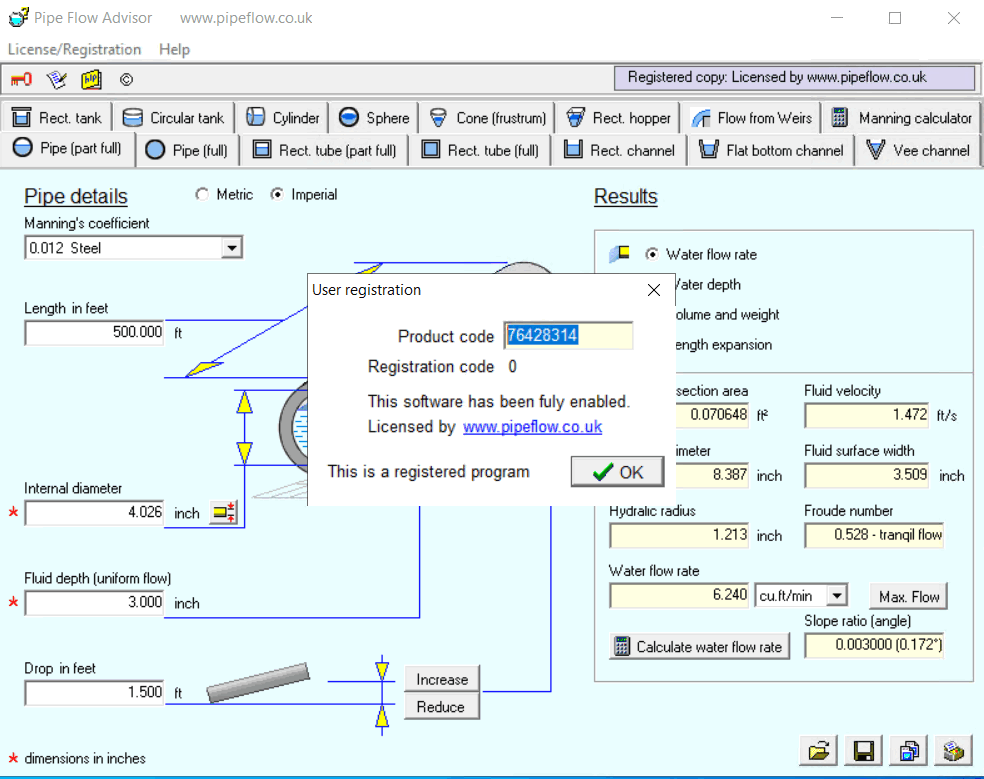

PipeFlow Advisor 1.10

PipeFlow Advisor software can estimate the flow rate of water in open channels and closed channels of various shapes. It can also estimate the flow rate from a tank, for a variety of tank shapes, to calculate the time it will take for the tank to empty under gravity flow. Flow in Open Channels Flow in an open channel occurs on a slope due to the effect of gravity on the fluid.

In many cases the fluid flow has a free surface, such as an open channel, flume, or just a half-filled pipe. The fluid is not under pressure, other than atmospheric pressure. Over time, a number of formulas have been developed to provide an estimate of the flow rate that occurs in open channels, with Manning’s formula being widely accepted as the standard method and the best method for obtaining a reliable estimate of flow.

A key feature of this software is the use of Manning’s formula. This formula, developed based on practical experience and experimental results, allows users to obtain accurate estimates of flow rates in open channels and pipes. The software can also calculate flow rates for weirs, which is useful in the design and analysis of irrigation and water management systems.

In addition, Pipe Flow Advisor can calculate container capacities and estimate volume and weight flow in channels and pipes. These capabilities help users design and analyze fluid transfer systems more accurately and efficiently. This software is a valuable tool for civil engineers, mechanical engineers, and those working in the field of water management and fluid transfer systems.

Program features and functions:

• Estimation of water flow rates in open and closed channels of various shapes.
• Calculate the flow rate of a tank for a variety of tank shapes.
• Calculation of tank emptying time under gravity flow.
• Calculating flow rates for weirs.
• Calculate container capacities plus volume and weight flow in channels and pipes.
• Using Manning’s formula to calculate flow rate.
• Flow calculation in half-filled pipes.
• Calculation of flow in open channels.
• Calculate the time it takes to empty the tank.
• Calculate tank capacity.
