Retainex 2025 is a specialized, advanced software application for the analysis and design of complex retaining structures and deep excavations. It employs sophisticated numerical methods, primarily the Finite Element Method (FEM), to model the realistic, non-linear behavior of soil, structural elements, and their interaction under various construction stages. Unlike simpler limit equilibrium programs, Retainex simulates soil deformation, wall displacement, bending moments, and prop loads throughout the entire construction sequence, providing a more accurate and insightful assessment of performance and safety.

It is an industry-respected tool for designing critical infrastructure such as multi-propped basement excavations, diaphragm walls, secant pile walls, and anchored retaining systems in urban environments.

Key Features & Capabilities

Retainex 2025 is engineered for precision in modeling complex geotechnical scenarios.

Core Analysis & Design Modules:

1. Advanced Finite Element Analysis (FEA):
· 2D Plane Strain & Axisymmetric Modeling: Accurately models soil as a continuum using advanced constitutive models (e.g., Mohr-Coulomb, Hardening Soil).
· Staged Construction Analysis: Simulates step-by-step construction processes: excavation, wall installation, prop/anchor stressing, dewatering, and surcharge application. This is critical for predicting wall movements at each stage.
2. Comprehensive Structural Element Library:
· Wall Types: Diaphragm walls, sheet piles, secant/tangent pile walls, king post walls, and concrete retaining walls.
· Support Systems: Props (struts), ground anchors (tied-back), and berms. Models pre-stress in anchors and temperature effects in props.

3. Sophisticated Load & Condition Modeling:
· Complex Water Pressure: Models steady-state or transient pore water pressures, perched water tables, and artesian conditions.
· Surcharge Loads: Strip loads, patch loads, and point loads from adjacent foundations, roads, or construction plant.
· Seismic Analysis: Optional dynamic analysis module for earthquake loading.
4. Results & Post-Processing:
· Detailed Output: Generates contours of displacement, bending moment and shear force diagrams for walls, prop/anchor forces, soil stresses, and plastic indicators.

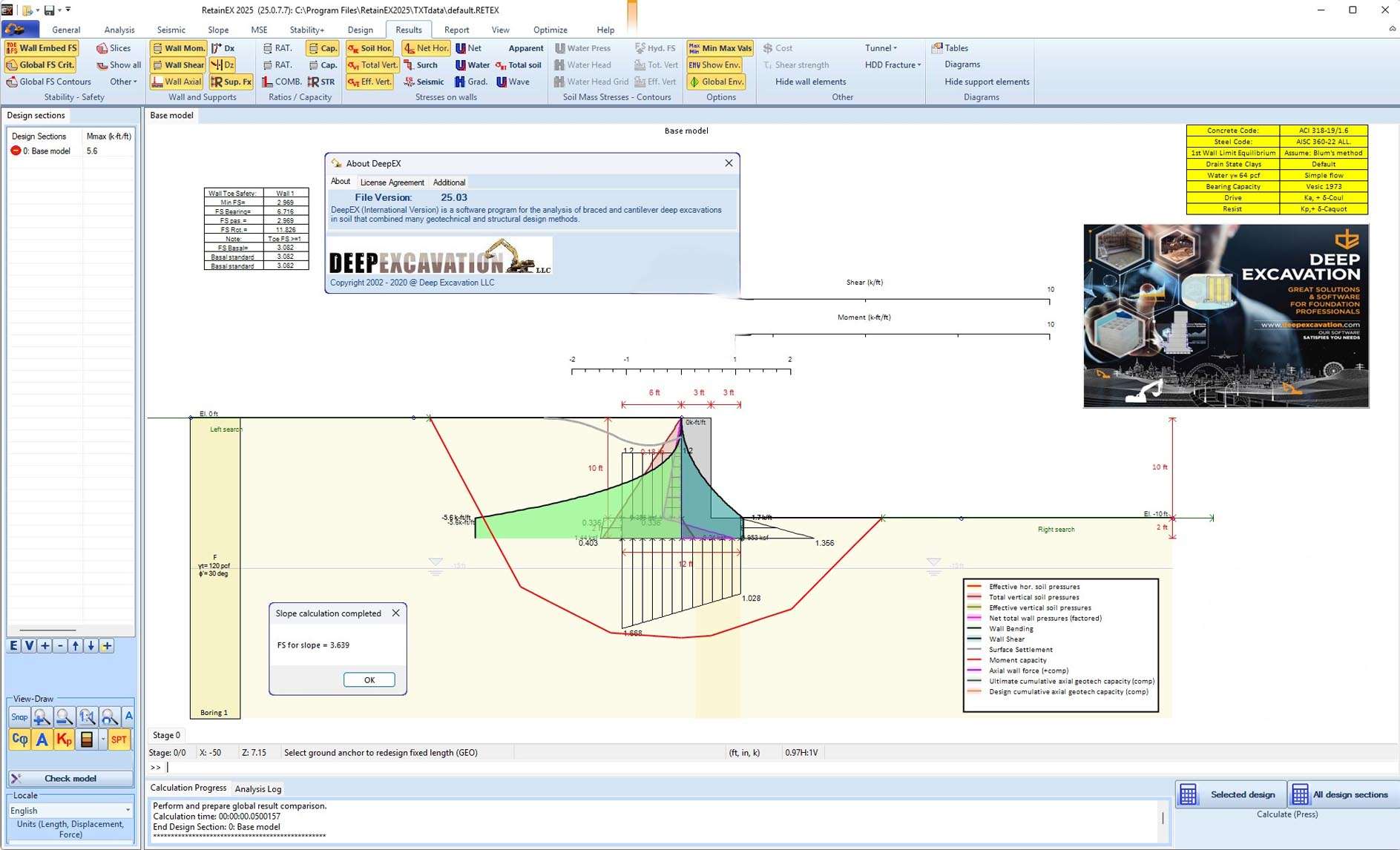

· Graphical Visualization: Clear plots of wall deflection profiles, ground settlement troughs, and bending moments at each construction stage.
· Compliance Checking: Checks structural elements against relevant concrete/steel design codes (e.g., Eurocode 2, ACI, AISC).

What’s New & Enhanced in the 2025 Release:

· Modernized User Interface: Streamlined workflow with improved graphical input for soil layers and construction stages.
· Enhanced Solver Performance: Faster computation times for complex models with improved numerical stability.
· Extended Soil Model Library: Inclusion of more advanced soil models for specific applications (e.g., small-strain stiffness).
· Improved Reporting Tools: More customizable and automated generation of calculation reports and summary tables.
· Better CAD Interoperability: Enhanced import/export capabilities for geometry and results with common CAD formats.

🖥️ System Requirements

Retainex 2025 is a 64-bit Windows application. The minimum system requirements are Windows 10 (64-bit), a 2 GHz dual-core processor, 8 GB of RAM, a graphics card with 1 GB VRAM and DirectX 11 support, 2 GB of free hard disk space, and a screen resolution of 1280×1024.

For recommended professional use to efficiently handle large, complex excavation models, a system with Windows 10/11 Pro (64-bit), a high-speed quad-core processor (Intel i7/i9 or AMD Ryzen 7/9), 16-32 GB of RAM, a dedicated graphics card (NVIDIA Quadro or GeForce RTX) with 2-4 GB VRAM, a fast SSD, and a high-resolution monitor (1920×1080 or higher) is strongly advised.
