FRAMECAD Steelwise is a specialized software solution for designing, engineering, detailing, and preparing manufacturing data for cold-formed (light-gauge) steel framing used in construction. As part of the integrated FRAMECAD ecosystem, it provides a complete workflow for modern steel-frame building projects—from importing architectural plans and creating detailed framing models to performing structural engineering checks and generating machine-ready manufacturing data. The software enables users to transform architectural concepts into production-ready steel framing systems while ensuring compliance with local building codes and structural requirements.

🔩 Primary Users

This specialized steel framing software is designed for:

• Cold-Formed Steel (CFS) Designers & Detailers creating light-gauge steel framing systems.

• Structural Engineers specializing in light steel frame construction and compliance.

• Steel Framing Manufacturers & Fabricators preparing manufacturing data for roll-forming equipment.

• BIM Coordinators & Modelers integrating steel framing into Building Information Modeling workflows.

• Construction & Building System Designers working with modern steel-frame building systems.

⚡ Key Features & Capabilities

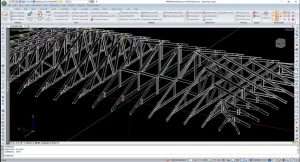

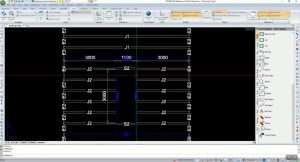

• Steel Framing Design & Detailing: Import architectural plans (2D or BIM) and create detailed steel framing models for walls, roofs, and floors with automatic panel sheet and connection detail generation.

• Structural Engineering & Compliance: Apply local building codes and load requirements (wind, snow, seismic) with real-time engineering checks to ensure designs meet structural and regulatory standards.

• Manufacturing Preparation (CAM): Export machine-ready files for roll-forming equipment and FRAMECAD machines, generating production instructions including tooling data and cutting lists.

• BIM & Design Integration: Seamless import/export capabilities with platforms like Revit, Strucsoft, and SolidWorks for coordinated Building Information Modeling workflows.

• Automated Framing Layouts: Intelligent tools for creating optimized steel framing layouts based on architectural input and structural requirements.

• Real-Time Engineering Validation: Continuous checking of framing designs against structural standards during the design process.

• Integrated Workflow: Complete solution from design concept through to manufacturing data within the FRAMECAD ecosystem.

🆕 What’s New in Latest Version

• Enhanced BIM Integration: Improved interoperability with major BIM platforms and file formats.

• Expanded Code Libraries: Updated compliance with latest international building codes and standards.

• Advanced Manufacturing Features: More sophisticated tooling and production data generation for automated fabrication.

• Improved User Interface: Streamlined workflow for faster design and detailing of complex framing systems.

• Performance Optimizations: Faster processing of large building models and real-time engineering calculations.

💻 System Requirements

• OS: Windows 10/11 Professional (64-bit)
