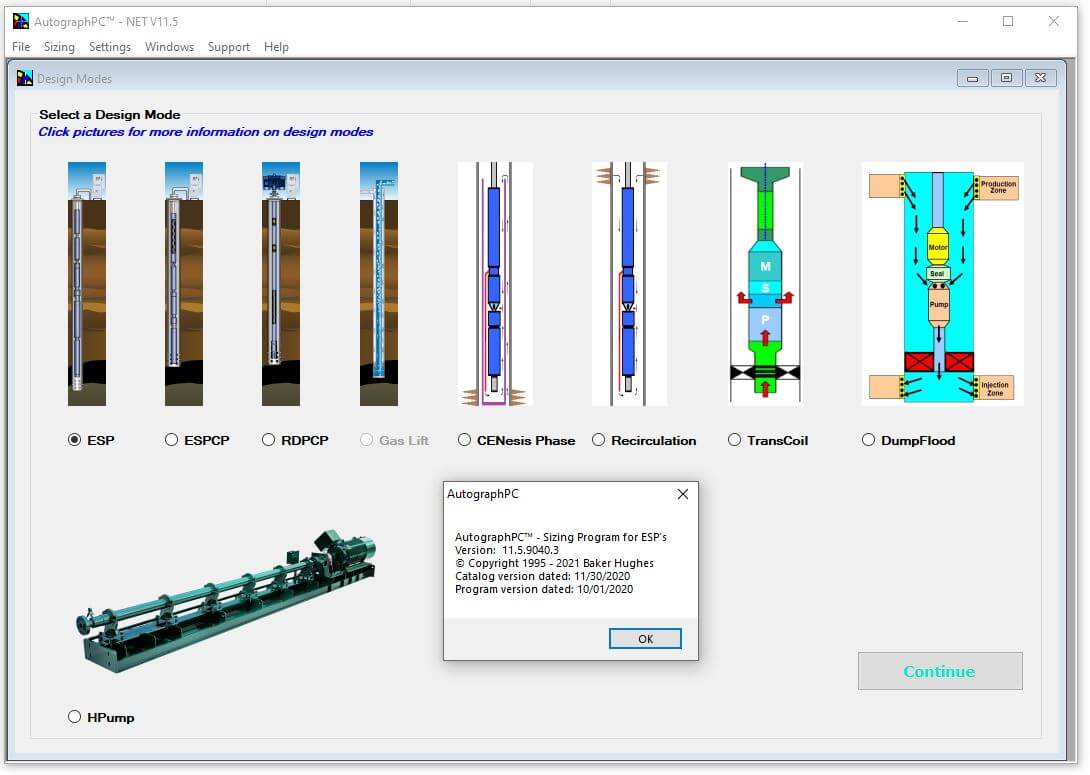

Baker Hughes Autograph PC 12.2

Available versions: 12.2 , 11.5.9 , 9.0.1

Baker Hughes Centrilift Autograph PC ™ is an artificial lift and application simulation software. It’s a powerful tool to give a comprehensive and user-friendly system design. This software can be used to design production systems, including: electrical submersible pumping (ESP) systems; electrical submersible progressing cavity pumping (ESPCP™) systems; rod-driven progressing cavity pumping (RDPCP™) systems; horizontal surface pumping (HPump™) systems; and gas lift systems, etc.

Each system installation is unique and with this software, all the well information, including production characteristics, fluid properties and well conditions, can be entered during the initial design phase to produce the optimum solution for each sizing.

Release Note

Version 12.2

See the v12.2 Release note

Version 11.5  (Oct, 2020)

• Added an option to read data from legacy GE Solutions file into Autograph.
• Added a feature to export multi-case analysis results into a pdf file.
• Added CG seals with below-motor bellows.
• Disabled Gas Lift module.
• Added options to calculate cable clearance with smallest casing/casing nominal ID.
• Updated Trans Coil module.
• Updated pump/seal/motor/pothead/cable/drive/sensor/trans coil/flex shaft/gassep database files.
• Other minor changes and bug fixes.

Version 11.4  (May, 2020)

• Expanded multi-file multi-case PDF report generator for ESPCP/RDPCP applications.
• Updated Trans Coil design module.
• Updated pump catalog curves for print out.
• Added zenith sensors.
• Allowed the user to input 100% water cut.
• Updated default .apcx files.
• Updated pump/seal/motor/pothead/cable/drive/sensor/trans coil/casing database files.
• Other minor changes and bug fixes.

Version 11.3  (Dec, 2019)

• Added a Multi-Case Analysis feature which allows the user to edit multiple cases in the same screen and perform analysis.
• Added a flex shaft option for ESPCP design in the Seal Screen.
• Updated pump/seal/motor/cable/pothead/drive head/gear reducer/trans coil database files.
• Arranged the parent stage list in the Custom Pump Curves option by alphabetical order.
• Updated Baker Hughes logo.
• Added a hot key (Ctrl+s) to save the .apcx file.
• Improved the performance when pump screen is loaded.
• Other minor changes and bug fixes.

Version 11.2  (Jun, 2019)

• Added pump comparison chart.
• Added options to import or copy directional survey data in ASAP module.
• Added taper HPump option.
• Added a new pump stage LNPSHH as a charge pump for horizontal pumps.
• Other minor changes and bug fixes.

Version 11.1  (Feb, 2019)

• Made changes to PDF report based on user feedback.
• Sorted pump stages in the ‘overlaid catalog pump curves’ window by alphabetical order.

Version 11.0  (Jan, 2019)

• Added Trans Coil module.
• Added multi-file multi-case PDF report generator (for regular ESP applications).
• Added default head modifier for LGE gas handler stages.
• Added LGE thrust chambers.
• Added seal elastomer selection.
• Added armor options for MLE and power cable.
• Updated pump/seal/motor/cable/pothead database.
• Other minor changes and bug fixes.
