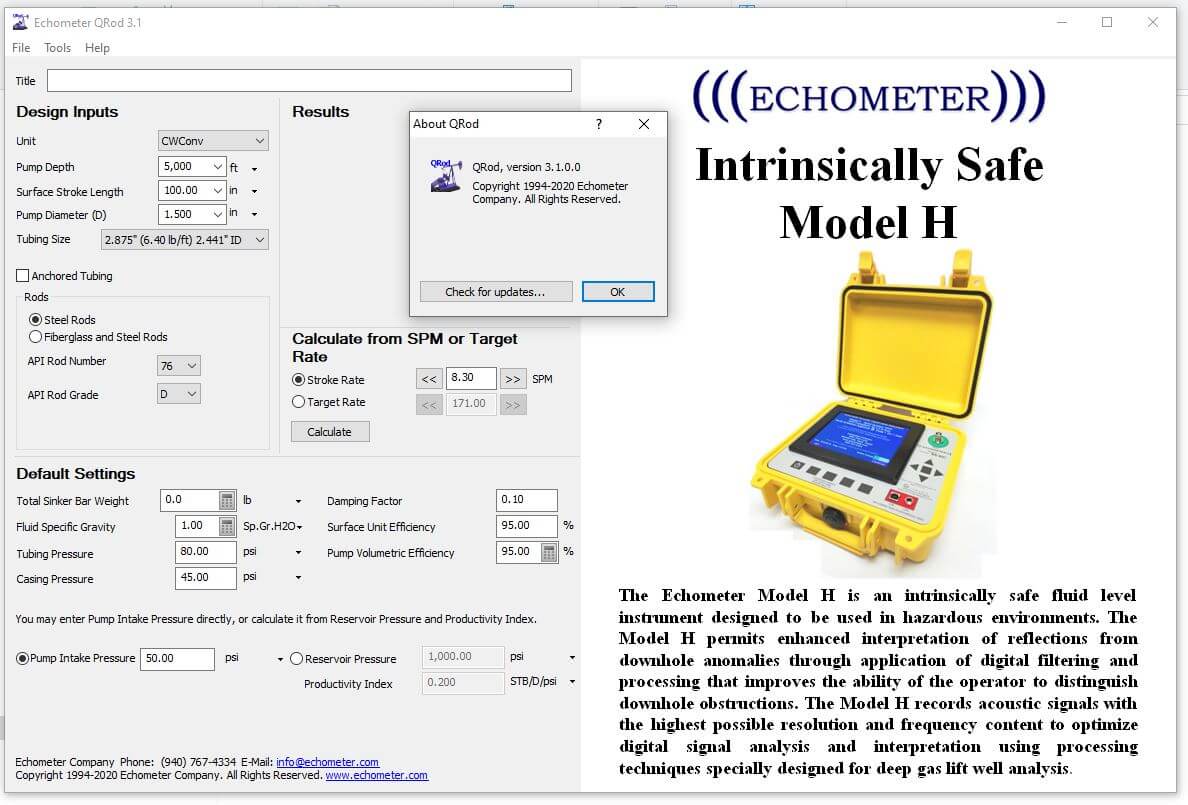

Echometer Qrod 3.1

Echometer Qrod for Sucker Rod Pumping Design

Echometer Qrod 3.1 is a specialized simulation software developed by Echometer for the oil and gas industry. It focuses on the design and analysis of sucker rod beam pumping installations, a critical component in many oil fields. This software targets petroleum engineers and pump designers, enabling them to optimize system performance through dynamic input-output relationship predictions.

Introduction and Applications in Oil Industry

Echometer Qrod 3.1 serves as a dedicated simulation tool for engineers within the oil and gas industry. Its primary function is to facilitate the design and performance analysis of sucker rod beam pumping systems, which are widely used for artificial lift in crude oil extraction. The software aids in understanding the complex interactions within these systems, contributing to more efficient and reliable oil production operations.

Key Design Tools and Capabilities

Echometer Qrod 3.1 offers a suite of specialized tools designed to enhance the precision of sucker rod pumping system design. These capabilities allow engineers to perform detailed hydraulic calculations and predict operational efficiencies critical for effective pump performance.

• Slippage Calculator: This tool quantizes the percentage of fluid that bypasses the pump’s valves, a key factor in determining actual pump displacement and overall efficiency.
• Tubing Fluid Gradient Calculator: This feature models the hydrostatic pressure exerted by the fluid column in the tubing, which is essential for accurate downhole pressure calculations and system balancing.
• Pump Displacement Calculations: The software provides precise calculations for both theoretical and actual pump displacement, considering factors like fluid slippage and rod pump volume.
• Dynamometer Data Interpretation: It facilitates the analysis of surface dynamometer data, offering insights into the loads experienced by the polished rod and the overall health of the pumping unit.

Dynamic Input-Output Analysis

A core capability of Echometer Qrod 3.1 is its ability to dynamically predict and visualize input-output relationships inherent in beam pumping systems. This feature allows engineers to observe how mechanical inputs translate into hydraulic outputs and performance metrics.

The software generates visual representations, such as predicted dynamometer cards, which illustrate the cycle of loads experienced by the pumping unit. By dynamically simulating these relationships, engineers can identify potential issues like excessive shock loading, rod float, or inefficient stroke length, enabling proactive design adjustments before field deployment.

Real-World Use Cases in Pipeline Engineering

Echometer Qrod 3.1 finds application in optimizing the design and operation of sucker rod pumping systems in various oil field projects. Engineers utilize the software to refine installations and troubleshoot performance issues, leading to improved operational outcomes.

• In numerous oil fields, the software has been employed to optimize the stroke length and speed of beam pumping units. This yields increased oil production rates and reduced energy consumption by fine-tuning the pump’s displacement to match reservoir conditions.
• The detailed fluid gradient and slippage calculations provided by Qrod have assisted engineers in selecting appropriate downhole pump sizes and configurations, thereby preventing premature equipment failure and reducing maintenance costs in deep-well applications.
• For fields experiencing varying crude oil viscosity and gas content, Echometer Qrod 3.1 has been instrumental in predicting performance under different conditions, allowing for adaptive design strategies that maintain efficiency.

Comparison with Other Pump Design Software

Echometer Qrod 3.1 distinguishes itself from other pump design software through its targeted functionality and integrated analytical tools for sucker rod pumping systems.

• While many software packages offer general hydraulic calculations, Echometer Qrod 3.1 specializes in the unique physics of reciprocating sucker rod pumps. Its focus ensures that calculations for fluid gradient and slippage are specifically tailored to this pumping method.
• The software’s capacity to directly import measured dynamometer data (DYN files) for overlay analysis provides a distinct advantage. This feature allows for an immediate comparison between predicted performance and actual field measurements, facilitating rapid diagnostics and design validation not always available in broader simulation tools.
• Unique calculators, such as the Slippage Calculator and Tubing Fluid Gradient Calculator, are deeply integrated into the design workflow. These tools tie efficiency metrics directly to displacement predictions, a synergistic approach that aids engineers in achieving optimal pump performance.

Future Updates and Development Plans

While specific details on future developments for Echometer Qrod 3.1 are typically proprietary, the software’s trajectory is generally guided by industry needs and user feedback. Continuous improvement aims to further refine the accuracy and utility of its simulation capabilities for sucker rod pumping design.

Echometer typically focuses on enhancing the integration of measured field data with simulation predictions. Future updates may include expanded libraries of equipment parameters, improved visualization tools, or finer resolution in hydraulic modeling to better capture transient conditions encountered in pumping operations. User-driven insights often guide the development of new diagnostic features or refinements to existing calculation modules, ensuring the software remains relevant and effective for petroleum engineers.

Frequently Asked Questions

How does Echometer Qrod 3.1 improve sucker rod pumping design?

Echometer Qrod 3.1 provides sophisticated design tools that allow engineers to analyze performance metrics such as pump displacement and surface dynamometer loads effectively. This enables engineers to make data-driven decisions, enhancing the efficiency of pump systems in their installations.

Is Echometer Qrod 3.1 compatible with other dynamometer analysis software?

Echometer Qrod 3.1 can import dynamometer measured surface DYN files, allowing it to overlay actual performance data onto predicted graphics. This feature enhances accuracy and allows for easy comparison with results from other dynamometer analysis tools.

What unique features set Echometer Qrod 3.1 apart from its competitors?

Echometer Qrod includes several unique design calculators such as the Slippage Calculator and Tubing Fluid Gradient Calculator which tie efficiency metrics directly to displacement predictions. This focus on integrating multiple calculations dynamically is not typically found in other beam pumping software.
