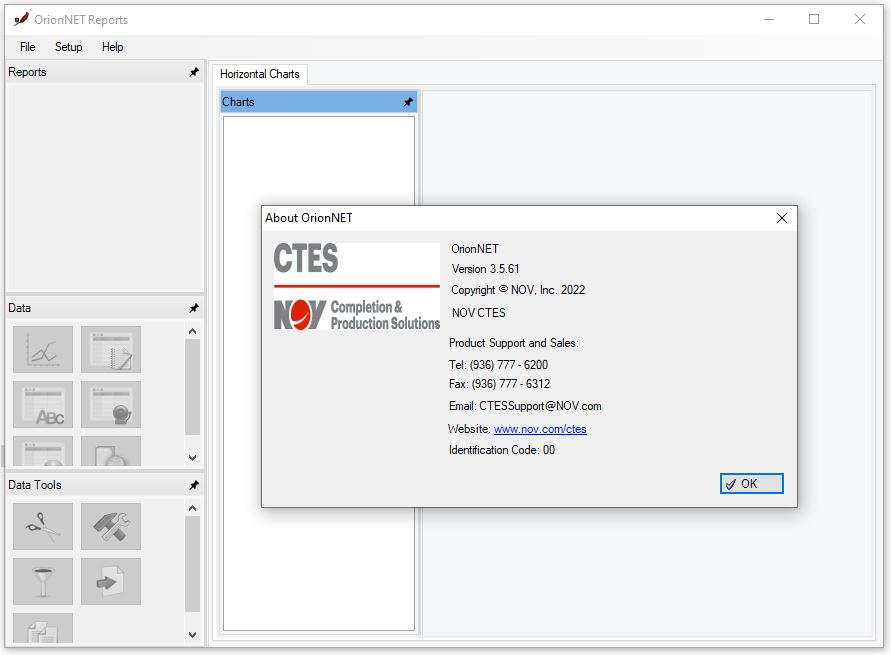

CTES OrionNET 3.5

OrionNET™ software acquires and stores important field job data. The touchscreen-compatible software can display these data in real time, either locally or remotely. OrionNET software is Ethernet-based, modular, and configurable to user requirements.

OrionNET enables the end user to:

View secure, real-time data from a Windows based PC connected to the Internet
Monitor multiple jobs from a single location
Obtain remote diagnostics and support
Configure displays, including horizontal charts, using imperial, metric, or combination units

OrionNET allows you to confidently manage data by using the software in conjunction with the Orion III, IV, or V hardware system or with another controller system. Users can customize viewer displays and configure large digital displays and strip charts using imperial, metric, or combination units. They can also pause and resume acquisition for a set time period, back-up databases by copying to a USB drive, and split large databases into smaller fragments for merging after emailing.

Features/Benefits

Acquire data from multiple sources
View data remotely
Create customized screen layouts
Acquire and store data automatically on system start-up or on demand
Use diagnostics displays to help identify and resolve any issues with Orion V, Orion IV, ASCII via Serial, and derived channel data sources
Password-protect the configuration utility and the view-designer layout
Append data to an existing database
Export data to a CSV file
Use the OrionNET reporting functionality to modify copies of original databases to adjust sensor-data using factors, trim beginning or ending data, and merge databases from the same job
Filter data within the reporting functionality’s data log
Integrate with other hardware/software systems via ASCII or WITS0 output streams
Incorporate alarms and warnings (high and low) on every channel
Use OrionNET and Cerberus v10.0 or later software in tandem to model:
- Forces: real-time measured versus predicted values
- Fatigue: real-time fatigue life calculations
- Limits: real-time burst and collapse

OrionNET 3.5 Enhancements

Auto push data to Max Completions and simplified start-up screen
Default system channels added
- Manual
  - CSG 1 ID
  - CSG 2 ID
  - CT OD
  - Density
  - Pump rate
  - Return rate
  - Viscosity
- Derived Channels
  - Differential pressure
  - Bottoms up time
  - Annular volume
  - Annular velocity
