Introduction to DEHNsupport Toolbox

DEHNsupport Toolbox 3.251 is a specialized planning software developed by DEHN GmbH. This application is designed to assist electrical engineers and planners in the complex process of designing and implementing effective lightning protection systems. It serves as a crucial tool for risk management and compliance within the electrical engineering sector, particularly for ensuring safety in installations.

Modules of DEHNsupport Toolbox

Risk Management Tool

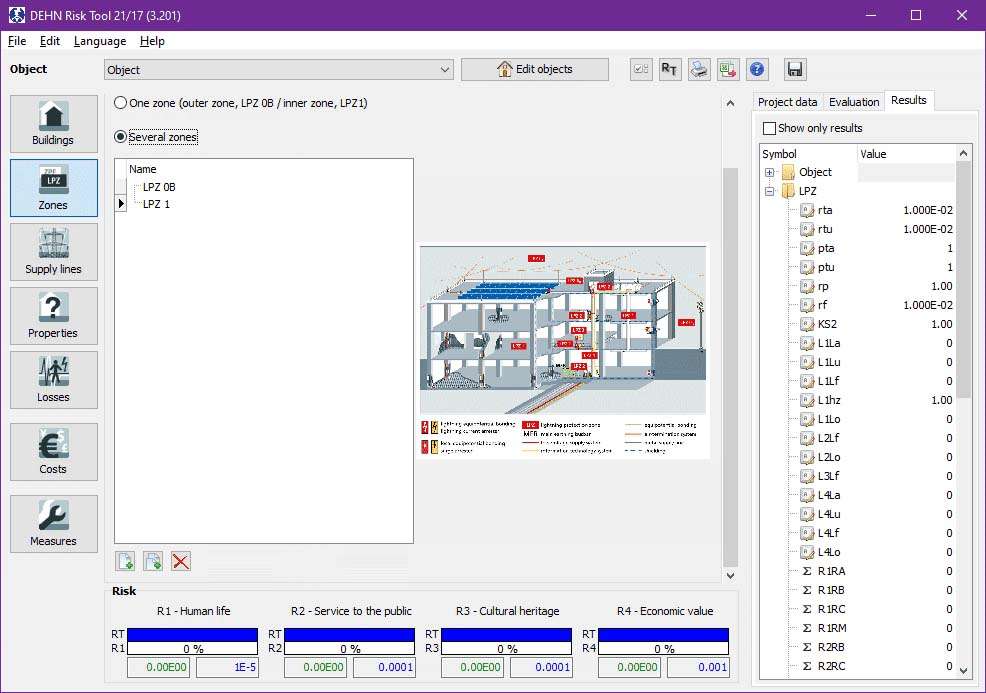

The Risk Management Tool within DEHNsupport Toolbox facilitates detailed risk analyses for structures. This module helps users quantify the potential risks associated with lightning strikes, considering factors like structure type, occupancy, and consequences of failure, thereby enabling informed decisions on necessary protection measures.

Separation Distance Tool

Ensuring adequate separation distances is critical to prevent flashover between conductive parts. The Separation Distance Tool calculates the required clearances according to relevant standards, such as IEC 62305, helping engineers maintain safe distances between the lightning protection system components and other conductive elements within or near a structure.

Air-Termination Tool

Designing an effective air-termination system requires precise calculations for components like lightning rods. The Air-Termination Tool assists in dimensioning and positioning these elements to ensure they can intercept lightning strikes reliably, covering areas according to established protection methods outlined in international standards.

Earthing Tool

An effective earthing system is fundamental for safely dissipating lightning current into the ground. The Earthing Tool aids in calculating the necessary length and configuration of earth electrodes to achieve the required low earth resistance, which is essential for the overall performance of the lightning protection system.

Surge Protective Device Module

Protecting sensitive electrical and electronic equipment from surges caused by lightning requires careful selection of Surge Protective Devices (SPDs). This module provides features for the dimensioning and selection of appropriate SPDs, taking into account factors like network characteristics and protection goals, thereby safeguarding installations against transient overvoltages.

Standards Compliance and Adaptability

DEHNsupport Toolbox is engineered to adhere to a range of international and national standards, with a primary focus on IEC 62305. The software’s design ensures that planners can reliably implement protection measures that meet these stringent safety requirements. Its adaptability allows for adjustments based on country-specific regulations, making it a versatile tool for projects worldwide.

Real-World Applications

In practical electrical engineering projects, DEHNsupport Toolbox is utilized for a variety of applications, from protecting industrial facilities and residential buildings to specialized structures like wind turbines and telecommunication masts. For example, its risk assessment capabilities help determine the necessity and extent of lightning protection for chemical plants, where even minor electrical failures can have severe consequences. The software’s SPD selection module is instrumental in safeguarding data centers, ensuring the continuous operation of critical IT infrastructure against electrical disturbances.

Comparison with Alternative Software

When compared to general electrical design software, DEHNsupport Toolbox offers specialized functionalities specifically for lightning protection planning. While broader CAD tools can handle schematic creation, DEHNsupport Toolbox provides integrated calculation modules for risk analysis, separation distances, and SPD selection that are directly tied to lightning protection standards like IEC 62305. This specialization ensures a more focused and accurate approach to lightning safety design than general-purpose software.

Frequently Asked Questions

What is the purpose of the DEHNsupport Toolbox in lightning protection planning?

The DEHNsupport Toolbox is designed to assist electrical planners and electricians in developing comprehensive lightning protection systems. It provides various calculation tools to ensure compliance with international safety standards and to facilitate effective risk management in planning.

How does DEHNsupport Toolbox ensure compliance with international standards for lightning protection?

DEHNsupport Toolbox incorporates various modules that adhere to international standards such as IEC 62305 and country-specific regulations. This ensures that the lightning protection systems designed using the software meet all necessary safety requirements effectively.

Can I use DEHNsupport Toolbox for projects outside of Europe?

Yes, DEHNsupport Toolbox is adaptable for use in various regions worldwide, as it includes modules designed for compliance with international standards and regulations. This flexibility allows for effective lightning protection planning across different environments.
