DNV Sesam Xtract 6.2

DNV Sesam Xtract 6.2 for civil engineers

DNV Sesam Xtract 6.2 is a specialized analysis software developed by DNV (Det Norske Veritas). It is specifically engineered for structural analysis and hydrodynamic analysis within the offshore and marine industry. This software assists civil engineers in evaluating complex marine structures such as oil platforms and ships. DNV Sesam Xtract provides robust capabilities for stress, strain, stability, and dynamic analyses, enabling thorough structural integrity assessments.

Applications in Marine Engineering

The offshore and marine industry relies on meticulous engineering to ensure the safety and longevity of critical infrastructure. DNV Sesam Xtract is primarily utilized by civil engineers and structural analysts working on projects involving various marine environments. Its analytical functions are directly applicable to the design and assessment of structures subjected to extreme environmental conditions and operational loads.

Key areas of application include:

• Offshore Platforms: Analyzing the structural integrity of oil and gas platforms, including their components, foundations, and responses to wave and current loading.
• Ships and Vessels: Evaluating hull strength, stability, and resistance to dynamic forces experienced at sea, ensuring compliance with maritime regulations.
• Offshore Wind Turbines: Assessing the structural performance of wind turbine foundations and towers under combined static, dynamic, and environmental loads, crucial for renewable energy infrastructure.
• Subsea Structures: Analyzing the behavior of underwater installations and equipment under hydrostatic pressure and operational stresses.

Key Analytical Capabilities

DNV Sesam Xtract offers a suite of analytical tools designed to address the complexities of marine structures. These capabilities enable engineers to simulate and predict structural behavior under various operational and environmental conditions.

Stress and Strain Analysis

This module allows engineers to meticulously assess the distribution of stresses and strains across a marine structure. By creating detailed finite element models, users can identify areas of high stress concentration and predict potential deformation. This is fundamental for ensuring that structures can withstand designed loads without exceeding material limits, thereby preventing premature failure.

Fatigue and Stability Analysis

Predicting the long-term performance of marine structures is crucial, especially concerning fatigue. DNV Sesam Xtract includes tools for fatigue analysis, which simulates the cumulative effects of cyclic loading over the structure’s lifespan. Furthermore, the software provides comprehensive hydrostatic stability analysis, verifying that vessels and platforms maintain equilibrium under various loading conditions and environmental disturbances, including accidental flooding scenarios.

Dynamic Analysis Versatility

Marine environments are characterized by dynamic forces, such as wave impacts, wind gusts, and seismic activity. DNV Sesam Xtract excels in dynamic analysis, enabling engineers to model and understand the response of structures to time-varying loads. This includes assessing phenomena like wave-induced vibrations, platform motion, and the effects of extreme weather events, ensuring the structure’s resilience and safety.

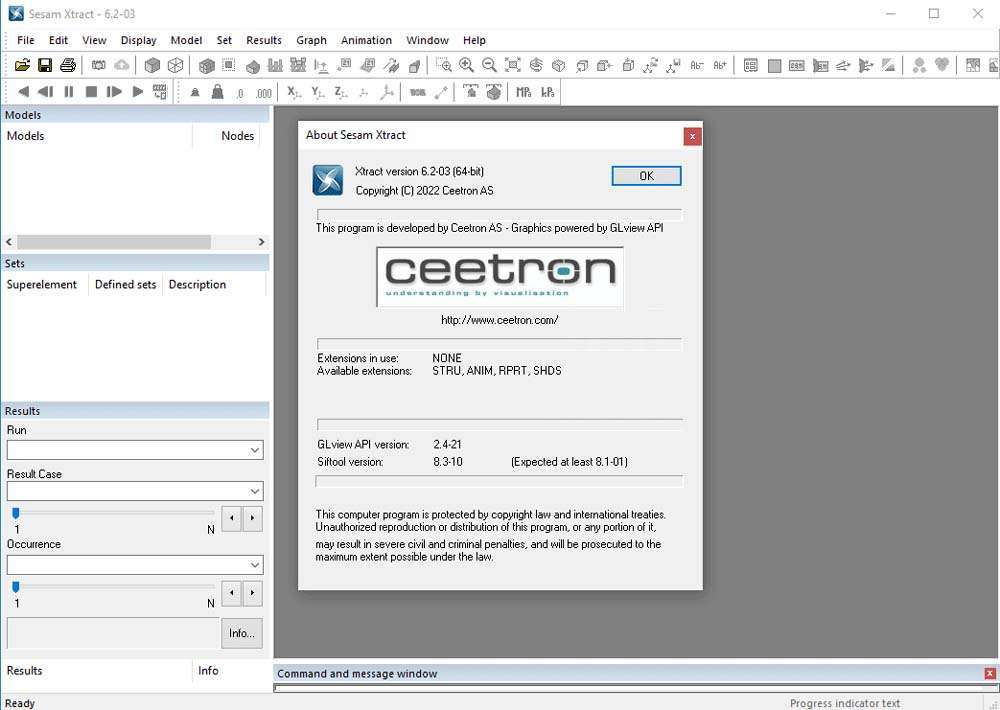

Graphical Interface and User Experience

A significant aspect of DNV Sesam Xtract is its graphical interface, which is designed to facilitate efficient workflow for marine structural analysis. The software provides powerful visualization tools that allow engineers to interpret complex simulation results effectively. Users can generate detailed plots, stress contours, and animations to better understand the behavior of their models. This user-friendly graphical environment enhances model comprehension and aids in the identification of critical structural performance characteristics.

Comparison with Alternative Software

When evaluating marine structural analysis software, DNV Sesam Xtract distinguishes itself through specific functionalities. While general-purpose finite element analysis software can be applied to marine problems, Sesam Xtract is optimized with marine-specific elements and load cases. Its strength lies in providing a tightly integrated workflow for hydrodynamics, structural response, and fatigue, often favored for its visualization capabilities in marine contexts. Other software may offer broader application ranges or different mathematical approaches, but Sesam Xtract is tailored for the deep analysis requirements of the offshore and maritime sectors.

Real-World Use Cases

DNV Sesam Xtract has been instrumental in the successful development and assessment of numerous marine engineering projects. For instance, it has been used to perform fatigue assessments for the design of offshore wind turbine support structures, ensuring their durability in harsh sea conditions. Additionally, its capabilities have been applied to analyze the structural integrity of complex ship hulls undergoing extreme sea states and to evaluate the stability and load-bearing capacity of large offshore platforms operating in demanding environments. These applications highlight the software’s critical role in ensuring the safety and reliability of marine infrastructure.

Frequently Asked Questions

What analysis types can DNV Sesam Xtract perform for marine structures?

DNV Sesam Xtract provides detailed capabilities for stress and strain analysis, fatigue analysis, stability checks, and dynamic response to environmental loads such as waves and wind. This range of analysis makes it suitable for assessing various structural scenarios in marine engineering.

How does DNV Sesam Xtract compare with other marine structural analysis software?

DNV Sesam Xtract is known for its streamlined user interface and high-performance graphics, which facilitate ease of model navigation and visualization. While other software may focus on different aspects of analysis or offer alternative features, Sesam Xtract stands out for the depth of its marine-specific analysis capabilities.

Can civil engineers use DNV Sesam Xtract for wind turbine structure analysis?

Yes, civil engineers can use DNV Sesam Xtract to evaluate the structural integrity of offshore wind turbines. The software supports various types of analyses, such as fatigue and dynamic response assessments, which are crucial for ensuring the safety and longevity of wind turbine structures in marine environments.
