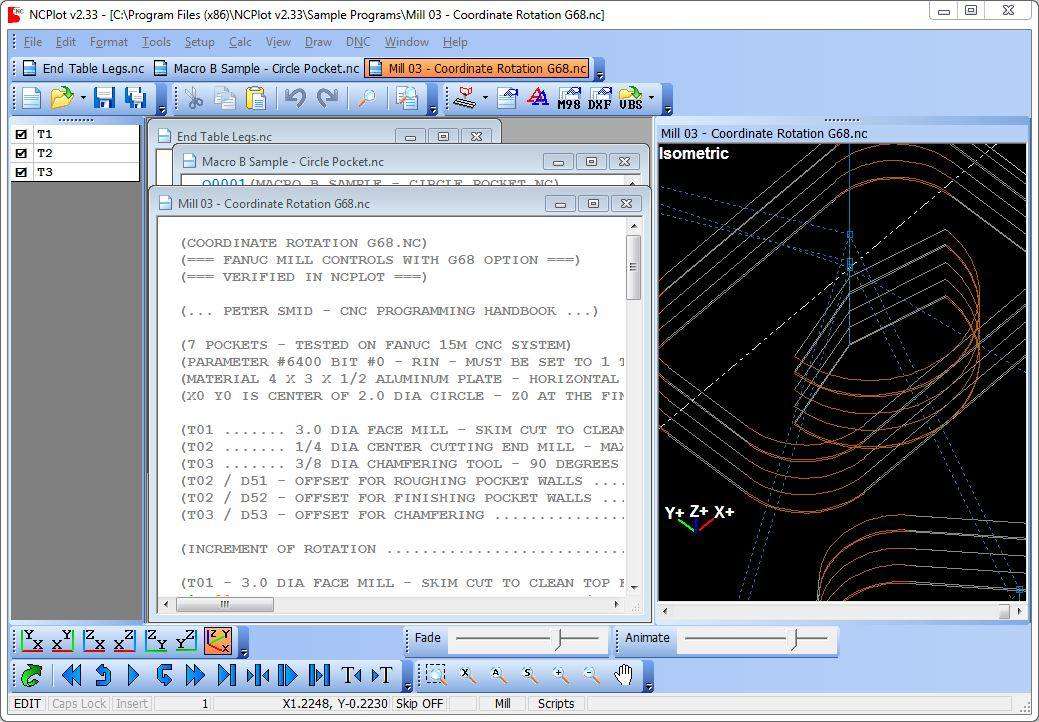

NCPlot 2.34

Download NCPlot 2.34 – G-Code Editing and Verification for CNC Programmers

Introduction and Industry Applications

NCPlot 2.34 is a versatile G-Code editor and backplotter developed by NCPlot, LLC. This software provides essential tools for CNC programmers, enabling precise G-Code editing and instant verification through backplotting. Its primary applications are found within the CNC machining and manufacturing sectors, where accurate programming is critical for operational success.

Comprehensive Editing Tools for G-Code

NCPlot offers a full suite of editing functionalities designed specifically for G-Code. Programmers can leverage standard editing operations such as cut, copy, and paste to manipulate code blocks efficiently. The software also includes robust find and replace capabilities, allowing for targeted modifications across large or complex G-Code files, thereby streamlining the debugging and optimization process.

Backplotting Capabilities and Verification Processes

A core feature of NCPlot is its advanced backplotting engine, which visually displays the toolpath generated by the G-Code. This immediate visual feedback is crucial for G-Code verification, allowing programmers to detect errors or inefficiencies in the code before they reach the CNC machine. By simulating the machining process, backplotting helps ensure the final output is error-free and produces the intended part geometry.

Importing and Converting Capabilities

NCPlot supports the conversion of standard text files directly into G-Code, facilitating the creation of machine instructions from basic numerical data. Furthermore, the software can import DXF files, a common vector graphics format from CAD software. This capability is particularly valuable for generating G-Code for lathe operations, bridging the gap between design and manufacturing execution for CNC machinery.

Runtime Estimation and Job Management

The software includes features for estimating machining times based on the provided G-Code. This function assists CNC programmers and shop managers in production planning and job quoting by offering a calculated estimate of how long a particular machining operation will take. Accurate runtime estimations contribute to better scheduling and resource management within manufacturing environments.

Advanced Features and Customizations

NCPlot distinguishes itself with several advanced features tailored for professional CNC programming. It provides an unlimited undo/redo functionality, allowing for extensive experimentation and correction without data loss. The multi-user interface can be customized to recognize and adapt to the specific syntax and requirements of various CNC controls, offering a personalized and efficient programming experience.

Practical Use Cases of NCPlot in Industry

In factory settings, NCPlot is utilized for preparing and verifying G-Code programs prior to machining complex components. For example, a CNC programmer might use NCPlot to import a part design from CAD, generate the G-Code, and then use the backplotter to confirm the toolpath will not clash with fixtures or the workpiece. This verification saves significant time and material by preventing costly machining errors during production runs.

Another common application involves workshops that handle diverse machining jobs. NCPlot’s ability to convert plain text to G-Code can be valuable for simpler operations or when programming legacy machines. The software’s adaptable interface allows programmers to quickly switch between different machine profiles, ensuring code compatibility and optimizing efficiency across a varied range of CNC equipment.

Frequently Asked Questions

What can NCPlot do for G-Code editing?

NCPlot allows for comprehensive editing of G-Code by offering features such as a multi-user interface, unlimited undo/redo capabilities, and a variety of formatting tools. These functions make it an essential utility for CNC programmers who require precision and flexibility in their code adjustments.

How does NCPlot integrate with existing CAD/CAM software?

NCPlot can import DXF drawings, which enables it to generate G-Code, particularly for lathe operations. This integration with CAD/CAM outputs enhances the workflow for CNC programmers, facilitating smoother transitions from design files to executable machine code.

What features differentiate NCPlot from other CNC programming tools?

NCPlot offers unique features including a backplotting tool for real-time G-Code verification and customizable interface options that adapt to various CNC controls. These capabilities provide users with tailored functionalities that enhance programming efficiency compared to more generic alternatives.
