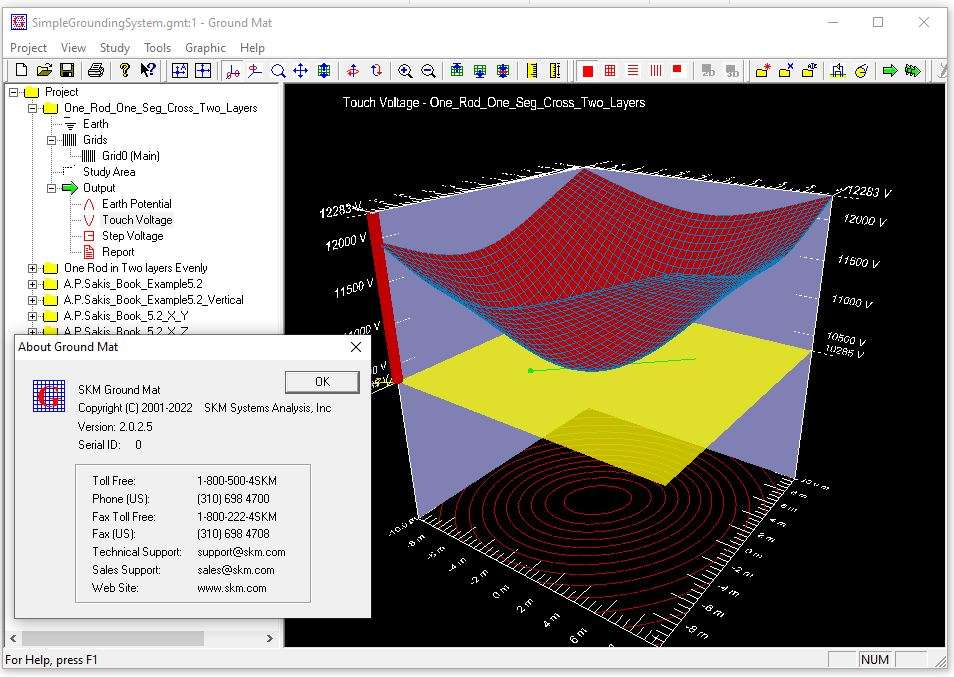

SKM GroundMat software or SKM GM for short is used for ground network design and analysis. This software is a product of SKM company. With the help of this software, it is possible to optimize the network design or strengthen the existing networks of any design form.

SKM GroundMat software uses a general-purpose finite element algorithm for potential analysis and graphical facilities to verify the efficiency of the ground system. PTW GroundMat software is an important tool that every power system engineer should have.

SKM GrounfMat Software Features

Design safer and more cost-effective ground networks

Save time with graphical logging and display

Share professional reports, charts, and designs

Solution Algorithms

Finite Element Analysis of Ground ConductorsFinite Element Analysis of Ground Rods
Network Conductor Current Displacement Using Matrix Analysis
Analysis Capabilities
Ground Model Analysis from Field Measurements
User-Specified Fault Current
Network and Ground Potential Analysis
Ability to Analyze Multiple Ground Systems
Ability to Analyze Potential Rise for Each Ground System Including Passive Networks or Neighboring Rods
Safety Analysis Including Surface Materials, Based on Body Weight and Exposure Time
Option to Use IEEE Std. 80 or IEC Std. 479 for safety analysis

Calculation of maximum allowable touch and step voltages

Comprehensive report for network and rod configuration

Comprehensive report for surface potential analysis including station data and currents radiated to ground by network elements

Hazard point assessment

Analysis of touch voltage, step voltage and ground potential
